Set up a Webhook

You need to set up a Webhook on Data Center or Cloud to ensure that Backbone receives the information as soon as an issue (or version) changes and can sync it right away.

You only need to set up a WebHook when:

You are syncing from Cloud to Data Center with the configuration on the Cloud side
You are syncing from Cloud to Cloud, using a remote license

There are two ways to create a WebHook:

Prerequisites

To create a WebHook, you need the following:

Be logged in as a user with global admin rights.
Have the URL provided by Backbone on Cloud while setting up the sync or in the “WebHook Data Center“ or “WebHook Cloud“ option.

Creating the WebHook Through the UI

Follow these steps to create a WebHook:

Select the Cog icon (settings) > System. Under Advanced, select WebHooks.
- Or navigate there with the following URL: YOUR_BASE_URL/plugins/servlet/webhooks
Click on “+ Create a WebHook“, located in the top right corner
Fill out the following required fields on the form:
1. Name: We suggest naming the WebHook clearly to recognize its origin and function for easier maintenance, like “Backbone Issue Sync WebHook”
2. Status: make sure it’s set to enabled
3. URL: The URL that is copied from the synchronization on Cloud under “WebHook Data Center“
For events, check the following boxes:
1. Issue Related Events:
  - JQL: use the project key of the project you want to sync, e.g. project = “KEY”
  - Check all the boxes except for the ones regarding the worklogs (and for cloud entity property, attachment and filter)
2. Project Related Events: Check all the boxes for the version events.
3. User Related events, Jira config Related events and Software Related events (Data Center only): Do not check any of the boxes.
Leave the “exclude body” checkbox unchecked.

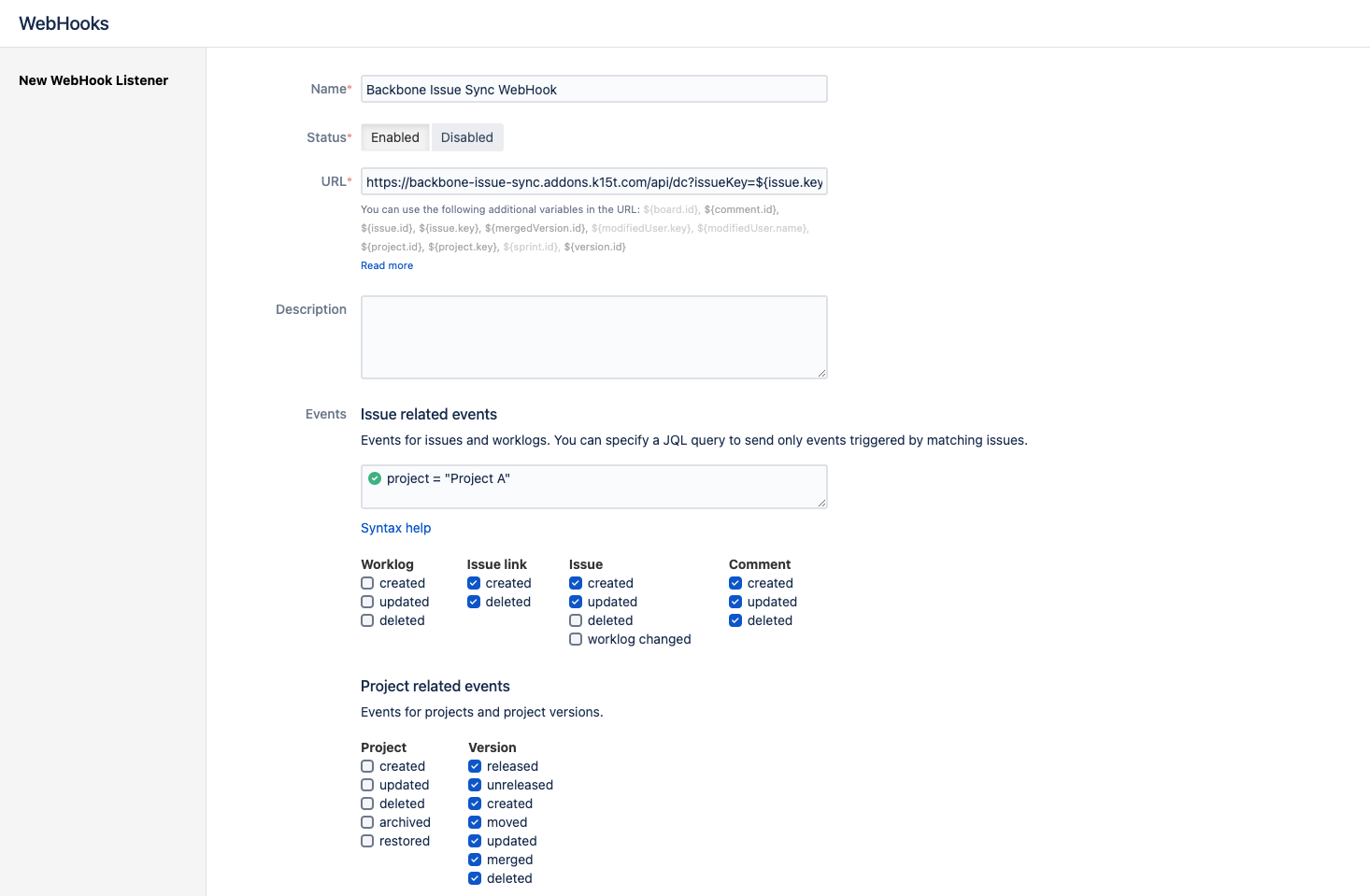

The WebHook should look something like the screenshot below
Click on Create

The JQL field is used to limit the WebHooks which are being sent to a certain set of issues, while this might be useful for some, this usually also means a lot more effort with maintaining the Webhook to make sure that Webhooks for all issues which should be synced with Backbone are being sent to our backend at all times.

You now have successfully created the WebHook.

Creating a Webhook Via Curl

When using curl you can enter the following command into your terminal:

For Cloud to Data Center synchronizations:

CODE

curl \
   -u user:password \
   -X POST \
   --data "@Desktop/Create_Webhook_Data.json" \
   -H "Content-Type: application/json" \
   http://localhost:8510/jira/rest/webhooks/1.0/webhook

For Cloud to Cloud synchronizations:

CODE

curl \
   -u user:apitoken \
   -X POST \
   --data "@Desktop/Create_Webhook_Data.json" \
   -H "Content-Type: application/json" \
   https://yourinstance.atlassian.net/rest/webhooks/1.0/webhook

For both types of synchronizations:

For this command, make sure to replace the following:

user:password with the credentials for a global admin user to your system.
user:apitoken with the username and an API token of your Cloud user.
“@Desktop/Create_Webhook_Data.json" to the actual file path of the file which you can download below.

In the file replace the CLIENTKEY with your actual ClientKey.

Create_Webhook_Data.json

If you get a response similar to this, you have successfully created a WebHook:

CODE

{"name":"Backbone Issue Sync Webhook","url":"https://backbone-issue-sync.addons.k15t.com/api/issue?auth=CLIENTKEY","excludeBody":false,"filters":{"issue-related-events-section":""},"events":["issuelink_created","jira:version_unreleased","comment_updated","jira:version_created","jira:version_moved","comment_deleted","jira:issue_updated","comment_created","jira:version_released","jira:version_deleted","jira:issue_created","jira:version_merged","issuelink_deleted","jira:version_updated"],"enabled":true,"self":"http://localhost:8510/jira/rest/webhooks/1.0/webhook/34","lastUpdatedUser":"admin","lastUpdatedDisplayName":"admin","lastUpdated":1721284374025}
