Change the Table Format

You can use the Scroll Table layout macro to specify how the table following this macro will be formatted when exported with the Scroll Exporters. Preferences selected in this macro will not affect how the table is displayed in Confluence. To apply formatting changes to a specific table you have to insert the macro directly before the table (eg. no empty paragraph lines between the macro and the table).

You can change the following table properties:

Scroll Word Exporter specific information

Please note, in order for the Scroll Table Layout macro settings to be applied in the generated Word export users must select the Fixed Width table option in the Export Properties

Section	Parameter	Description
General	Column Widths	Enter widths for the table columns to adopt in the export - percentages, relative values or number of pixels can be used to define the column widths. These values only affect the table output in the export and not on the Confluence page. Using % values → percentage values for a table need to add up to 100%. Therefore, if you have a 4-column table you could set 25%,25%,25%,25%. The resulting table in the export would then have 4-equal column widths Using pixel values → pixel values can be defined based on the width of the available page content. For example, defining 200,200,400,400 would result in a table with the first two column widths half the size of the last two columns Using relative values → relative values only support whole integers and must be followed by an asterisk . For example, if you have a 4-column table you could set 2,1,1,1. The resulting table in the export would have a first column which is double the width of the 3 remaining equal width columns. Please note, if you don't use whole integers the fractional part will not be preserved. This means if you define 1.5, 2, the relative values used would be 1, 2*
	Table sorting	Define whether to enable the sorting of table rows. If disabled, a table will be exported as shown on the Confluence page.
		Sort by column - When table sorting is Enabled, choose which column is used to sort the table rows.
		Sort by direction - When table sorting is Enabled, define whether table rows are displayed in ascending or descending order.
	Cell highlighting	Decide if cell highlighting set in Confluence should be displayed in exports.
Exporter specific options	Page orientation	Select either a Portrait or Landscape orientation for the page including the table in the export. Selecting a different page orientation from that defined in the template setting will cause a page break before and after the table. The page orientation is reset to what is defined in the template after the table.
	Repeat table header on page break (PDF only)	Choose whether table headers are repeated when a table breaks onto a new page. This setting will overwrite the preference which is already set in the template.
	Table styling	Assign a custom style to your table - read how to create custom table styles in the export templates here for Scroll PDF Exporter and here for Scroll Word Exporter
	Table cell styling (Word only)	Define whether heading cells for the associated table are exported using the style set on the Confluence page or the style set in the Word template. Please see the Table styling option section to read more about this export behaviour.

Compatibility with other macros

Some macros available within Confluence also output content in table format which can be modified by the Scroll Table Layout macro. The following list of macros are compatible:

Additional table styling options in Scroll Word Exporter

Scroll Word Exporter introduces additional Table styling options to the Scroll Table Layout macro. These include:

Use style from Word file – when enabled, the associated Confluence table heading cells will be exported with the style defined in the Word template.
Use style from Confluence page – when enabled, the associated Confluence table heading cells will be exported with the style defined on the Confluence page.

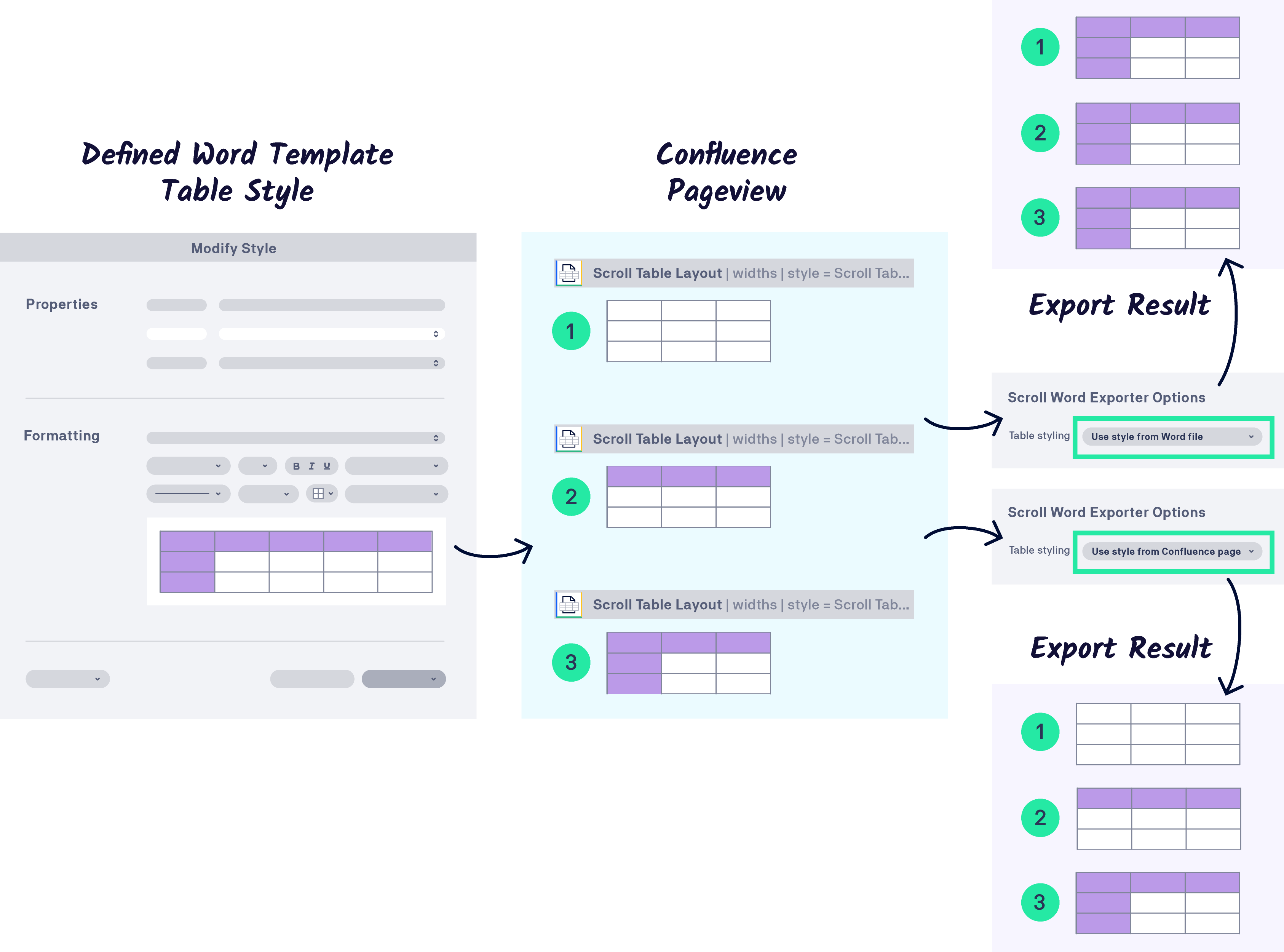

Both Table styling options impact how table heading rows and/or the table heading first column are exported from Confluence for the associated table. The following flow diagram highlights the differences in the resulting Word file export when using these options:
