Using the code examples below, you can create a button to start exports from within your Viewport. For this recipe, we are going to use AUI dialogs as our UI – this depends on jQuery, but you are free to create or use any alternative.
Export with Scroll PDF Exporter 4.x
Once you have created the export button , you can display the button in the viewport view.
Insert the required web resources
Firstly, insert the required web resources into the page.vm page of your template:
$page.resources.require("com.k15t.scroll.scroll-pdf:spark-export-ui-web-resource")
Include the export button
Now, you can to include the button code in the template wherever you want it to appear:
<button
class="aui-button scroll-pdf-launcher"
data-template-id="com.k15t.scroll.pdf.default-template-article"
data-space-key="$space.key"
data-page-id="$page.id"
data-scope="descendants"
data-quick-start="true"
>Export current page and children to PDF</button>
Defining the export settings
You can define various settings for the export:
|
Setting |
Information |
|---|---|
|
Template used |
Insert the ID of the template you want to use in the
To find the template ID, open Space Tools > Add-ons > Scroll PDF Exporter, find the template you want to use, open the actions dropdown menu, and click Template Information. |
|
Page exported |
You can define a page to be exported by replacing |
|
Scope of export |
Export either only defined page, or the defined page and its children. To export only the defined page, enter |
|
Quick Start |
With the If the key is defined as " |
Export with other Scroll Exporters
Preparing the assets
Firstly, insert the webresources required for AUI in the head of your page.vm:
<head>
$page.resources.js
$page.resources.css
$page.resources.require('com.atlassian.auiplugin:dialog2')
$page.resources.require('com.atlassian.auiplugin:aui-progress-indicator')
</head>
Now, put the code for the dialog on the same page as your export button. You can also put it somewhere else to be later included as template .
<section role="dialog" id="demo-dialog" class="aui-layer aui-dialog2 aui-dialog2-small" aria-hidden="true">
<header class="aui-dialog2-header">
<h2 class="aui-dialog2-header-main">Export</h2>
<a class="aui-dialog2-header-close">
<span class="aui-icon aui-icon-small aui-iconfont-close-dialog">Close</span>
</a>
</header>
<div class="aui-dialog2-content">
<div id="progress-bar" class="aui-progress-indicator">
<span class="aui-progress-indicator-value"></span>
</div>
<p class="status-message"></p>
</div>
<footer class="aui-dialog2-footer">
<div class="aui-dialog2-footer-actions">
<button id="dialog-close-button" class="aui-button aui-button-link">Cancel</button>
</div>
</footer>
</section>
If your theme does not declare the window.contextPath variable already, add this script tag in a .vm file. It must be evaluated before the JavaScript code from the next section.
<script>
window.contextPath = '$contextPath';
</script>
Implementing the code
The code below can be used in any <script> tag or in an external javascript file. Browser compatibility has been tested in IE9+, Firefox, Chrome and Safari.
We use jQuery instead of the global $ variable so you can paste this code into a script tag in any vm file. The $ variable causes issues in vm files because of the Velocity syntax. If you put this in a separate JavaScript file feel free to use $ instead.
jQuery(document).ready(function () {
if (jQuery('[data-exporter]').length) {
window.openExporter = function (link) {
var that = this;
this.link = link;
this.init = function () {
that.finished = false;
that.job = undefined;
that.link.preventDefault();
that.exporter = jQuery(that.link.target).data('exporter');
that.hash = that.link.target.href.substr(that.link.target.href.indexOf('#'));
that.pollInterval = 500;
that.restUrl = window.contextPath + '/rest';
that.restUrls = {
pdf: 'scroll-pdf/1.0',
office: 'scroll-office/1.0',
chm: 'scroll-chm/1.0',
html: 'scroll-html/1.0',
docbook: 'scroll-docbook/1.0',
eclipse: 'scroll-eclipsehelp/1.0',
epub: 'scroll-epub/1.0'
};
if (!!~Object.keys(that.restUrls).indexOf(that.exporter)) {
that.exportScheme = jQuery(that.link.target).data('export-scheme');
that.pageId = jQuery('[data-exporter]').data('page-id');
that.url = that.restUrl + '/' + that.restUrls[that.exporter] + '/export?exportSchemeId=' + that.exportScheme + '&rootPageId=' + that.pageId;
that.startExport();
}
};
this.poll = function () {
that.pollTimeout = setTimeout(function () {
jQuery.get(that.restUrl + '/' + that.restUrls[that.exporter] + '/async-tasks/' + that.job.id, function (response) {
that.updateDialog(response);
if (!response.finished && !that.finished) {
that.poll();
} else {
that.finishExport(response);
}
});
}, that.pollInterval);
};
this.startExport = function () {
that.openDialog();
jQuery(that.hash + ' #dialog-close-button').text('Cancel');
jQuery(that.hash + ' #dialog-close-button').click(function () {
AJS.dialog2(that.hash).hide();
});
jQuery.get(that.url, function (job) {
console.log(job);
that.job = job;
that.poll();
});
};
this.finishExport = function (response) {
that.finished = true;
var download = that.restUrl + '/' + that.restUrls[that.exporter] + '/export/' + that.job.id + '/' + response.filename;
jQuery(that.hash + ' .status-message').html('Export finished - <a class="aui-button aui-button-link" href="' + download + '">download</a>');
jQuery(that.hash + ' #dialog-close-button').text('Close');
window.location = download;
};

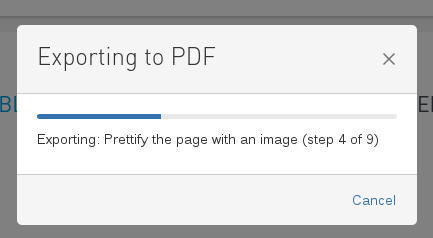

this.openDialog = function () {
AJS.dialog2(that.hash).show();
AJS.progressBars.setIndeterminate("#progress-bar");
var text = 'Exporting to ' + that.exporter.toUpperCase();
jQuery(that.hash + ' .aui-dialog2-header-main').text(text);
jQuery(that.hash + ' .status-message').html('Waiting for export to begin');
AJS.dialog2(that.hash).on('hide', function () {
if (!that.finished && that.job) {
that.finished = true;
clearTimeout(that.pollTimeout);
jQuery.ajax({
url: that.restUrl + '/' + that.restUrls[that.exporter] + '/async-tasks/' + that.job.id,
type: 'DELETE'
});
}
});
};
this.updateDialog = function (response) {
AJS.progressBars.update("#progress-bar", parseFloat(response.progress / 100));
jQuery(that.hash + ' .status-message').html(response.message);
};
this.init();
};
jQuery('[data-exporter]').on('click', function (link) {
new openExporter(link);
});
}
});
Usage
Any anchor element with the data attribute data-exporter is targeted for exports.
Example
<a href="#demo-dialog" data-exporter="pdf" data-export-scheme="bundled_default" data-page-id="$page.id">
EXPORT TO PDF
</a>
The href has to match the id of the dialog provided for the export.
Data Attributes
|
Name |
Value |
|---|---|
|
|
Selects the export scheme you want to use for exporting (including the template and all your adapted settings). Usually, Example: |
|
|
Selects the Scroll Exporter to use for exporting. The following values are supported as long as the respective Scroll Exporter is installed: |
|
|
Selects the root page of the export. The specified export scheme defines what pages actually will be exported. Typically you'll want to use the |
